16IR / 16ER Threading Inserts for CNC Thread Turning

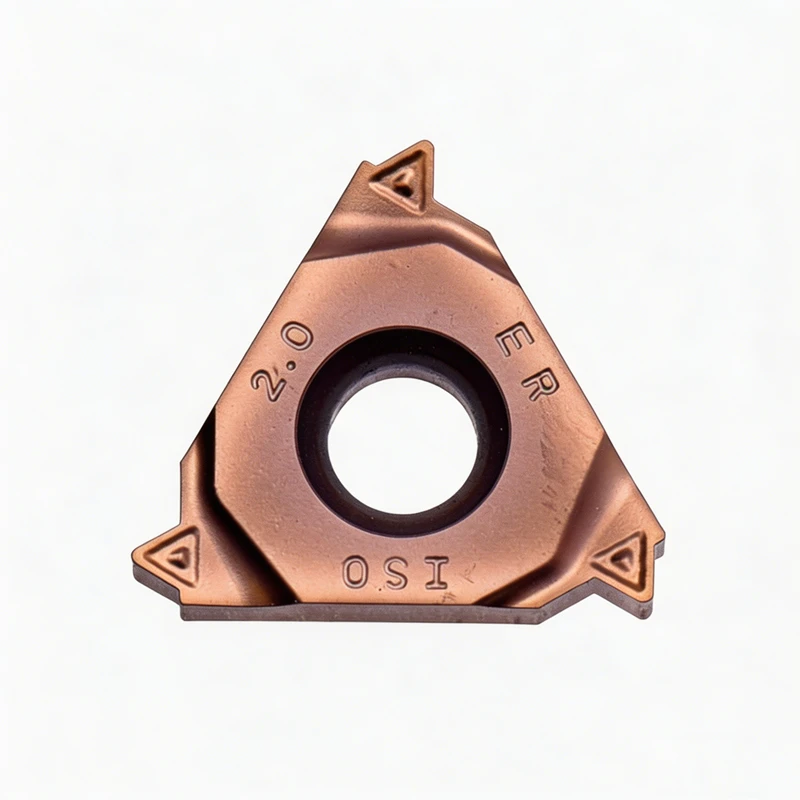

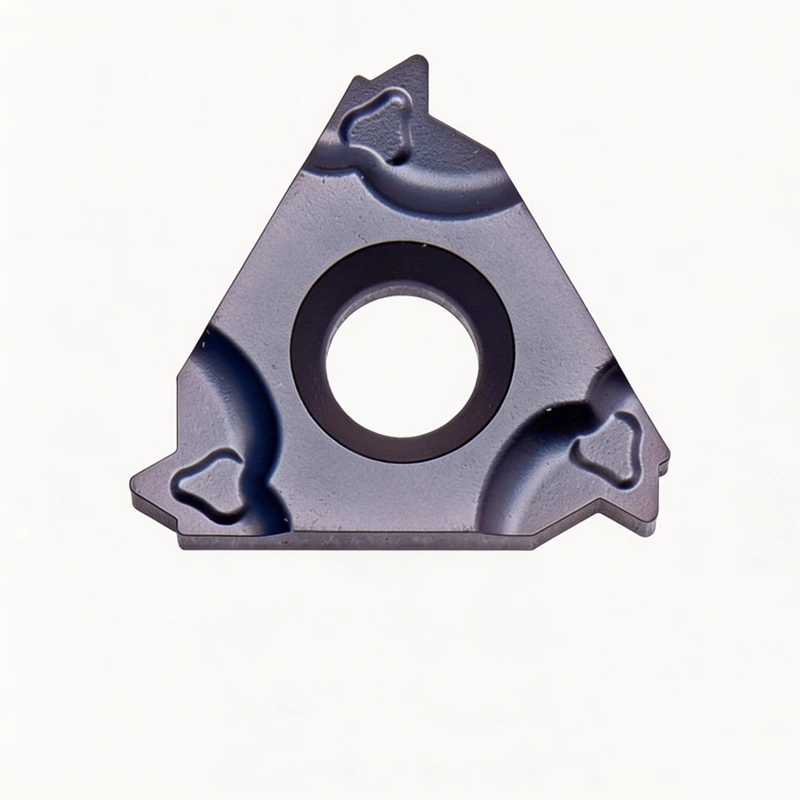

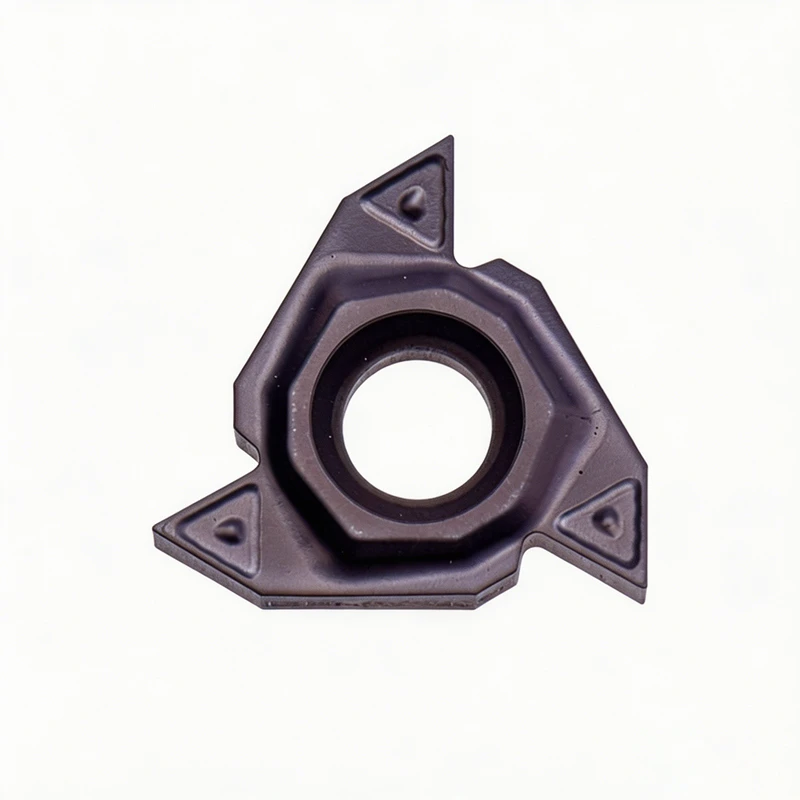

16IR / 16ER Threading Inserts are carbide threading inserts used for CNC thread turning on lathes and Swiss-type machines. The 16ER insert is designed for external thread machining, while the 16IR insert is used for internal thread machining.
These threading turning inserts are suitable for metric threads, imperial threads, UN unified threads, NPT taper pipe threads, Whitworth threads and BSPT pipe threads. With coated carbide material, stable cutting edges and three usable cutting corners, they help improve thread quality, tool life and machining efficiency.
What Are 16IR and 16ER Threading Inserts?

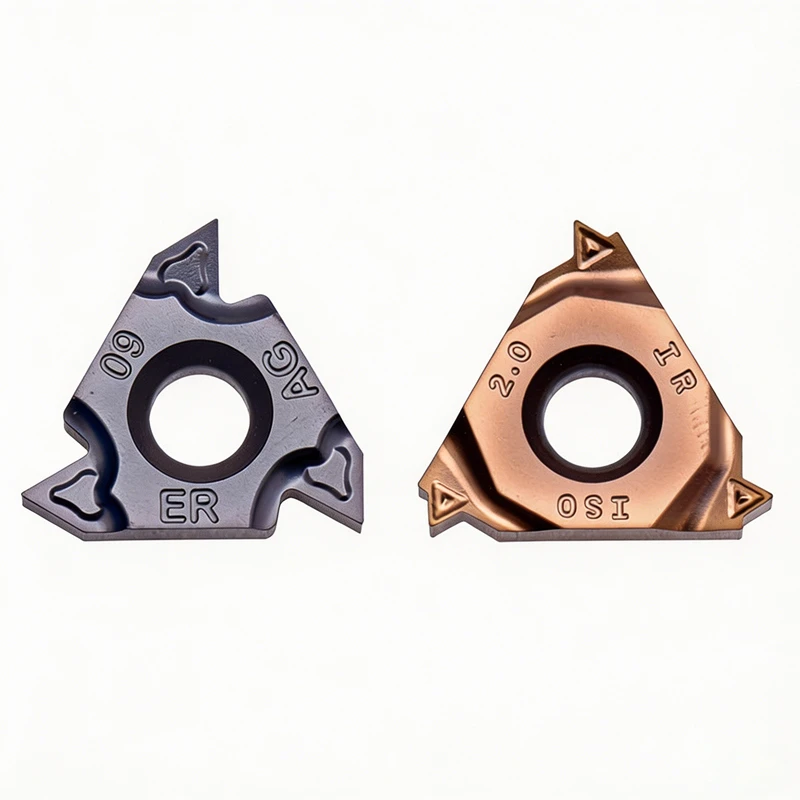

16IR and 16ER are standard threading insert models used for internal and external thread turning.
16ER Threading Inserts:
Used for external thread machining, such as outside threads on shafts, bolts and cylindrical parts.
16IR Threading Inserts:
Used for internal thread machining, such as inside threads in holes, nuts, sleeves and pipe fittings.
Both types are mounted on matching threading tool holders. The correct insert should be selected according to thread direction, thread type, pitch, workpiece material and machining condition.
Key Features of 16IR / 16ER Threading Inserts
Wide Compatibility
16ER inserts are suitable for external threads, and 16IR inserts are suitable for internal threads. They can be used on CNC lathes and Swiss machines for metric, imperial, UN, NPT, Whitworth and BSPT thread processing.
High Performance and Durability
Made from ultra-fine grain carbide with premium coating, these threading inserts offer high hardness, wear resistance and anti-chipping performance. They are designed to maintain stable cutting quality during continuous thread turning.
Cost-Effective Three-Edge Design
Each insert has three usable cutting edges. When one edge wears out, the insert can be indexed to another edge, helping reduce tooling cost, improve insert utilization and support efficient batch production.
Stable Thread Quality
The sharp cutting edge and accurate tip radius help form clean thread profiles, reduce burrs and improve thread surface finish. This is important for precision internal and external thread machining.
Easy Installation and Replacement
The insert structure is designed for quick mounting and replacement on compatible threading tool holders, helping reduce machine downtime and improve production efficiency.
Thread Types Available
16IR / 16ER Threading Inserts can be selected for different thread standards, including:
ISO metric threads
UN unified threads
NPT taper pipe threads
Whitworth threads
BSPT pipe threads
General 60° threads
General 55° threads
Internal threads
External threads
Applications
These threading inserts are commonly used for:
CNC thread turning
External thread machining
Internal thread machining
Shaft thread cutting
Nut and sleeve thread cutting
Pipe thread machining
Precision metal turning
Swiss machine thread processing
Batch production of threaded parts
Suitable Workpiece Materials
16IR / 16ER Threading Inserts can be used for machining:
Carbon steel
Alloy steel
Stainless steel
Cast iron
General metal workpieces
Medium-hardness materials
How to Choose 16IR or 16ER Threading Inserts
Choose 16ER threading inserts when machining external threads on the outside surface of a workpiece.
Choose 16IR threading inserts when machining internal threads inside a hole or bore.
The correct insert should also be selected according to thread standard, pitch or TPI, tip radius, tool holder type, coating grade and workpiece material.
Why Choose KEUE CNC 16IR / 16ER Threading Inserts?
For users searching for 16IR / 16ER Threading Inserts, the main concerns are usually thread standard compatibility, internal or external thread selection, insert durability, thread surface quality and tooling cost.
KEUE CNC 16IR / 16ER Threading Inserts are designed for stable CNC thread turning, covering multiple thread standards and machining conditions. The coated carbide structure, accurate tip radius and three-edge design help achieve reliable thread quality while reducing insert replacement cost.
FAQ
Q1: What is the difference between 16IR and 16ER threading inserts?
16ER threading inserts are used for external thread machining, while 16IR threading inserts are used for internal thread machining.
Q2: What machines can use 16IR / 16ER Threading Inserts?
They are suitable for CNC lathes and Swiss-type machines when matched with the correct threading tool holders.
Q3: What thread standards can these inserts process?
They can be selected for ISO metric threads, UN unified threads, NPT threads, Whitworth threads, BSPT threads and general 55° or 60° thread forms.
Q4: Why do 16IR / 16ER inserts have three cutting edges?
The three-edge design allows the insert to be indexed after one edge wears out, helping reduce tooling cost and improve production efficiency.
Q5: Are these inserts suitable for stainless steel?
Yes. With suitable coating and cutting parameters, 16IR / 16ER threading inserts can be used for stainless steel thread machining.
Q6: How should I choose the correct threading insert?
Choose according to internal or external thread type, thread standard, pitch or TPI, tip radius, tool holder compatibility and workpiece material.
