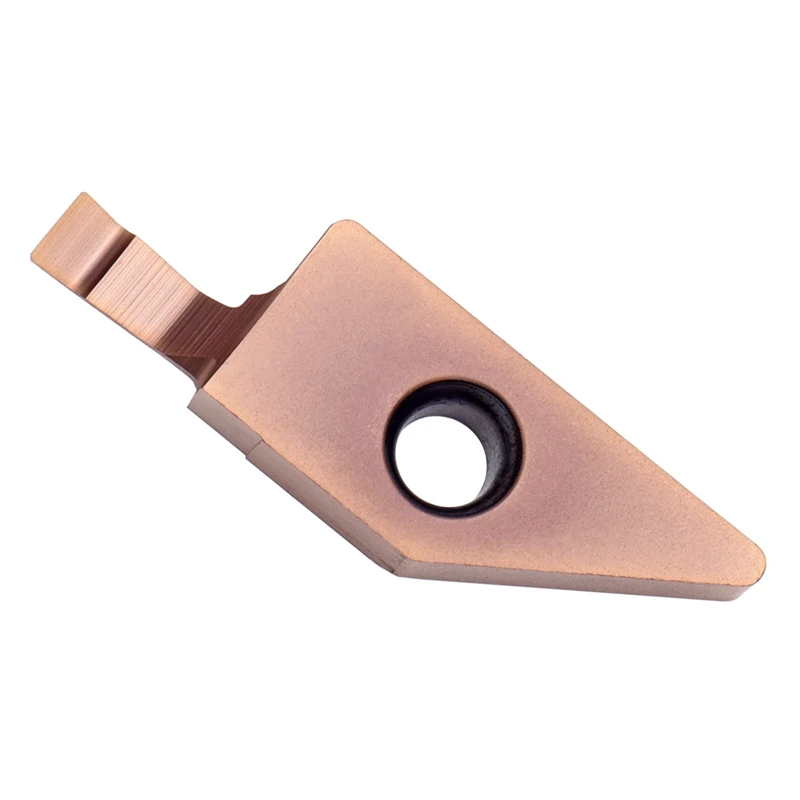

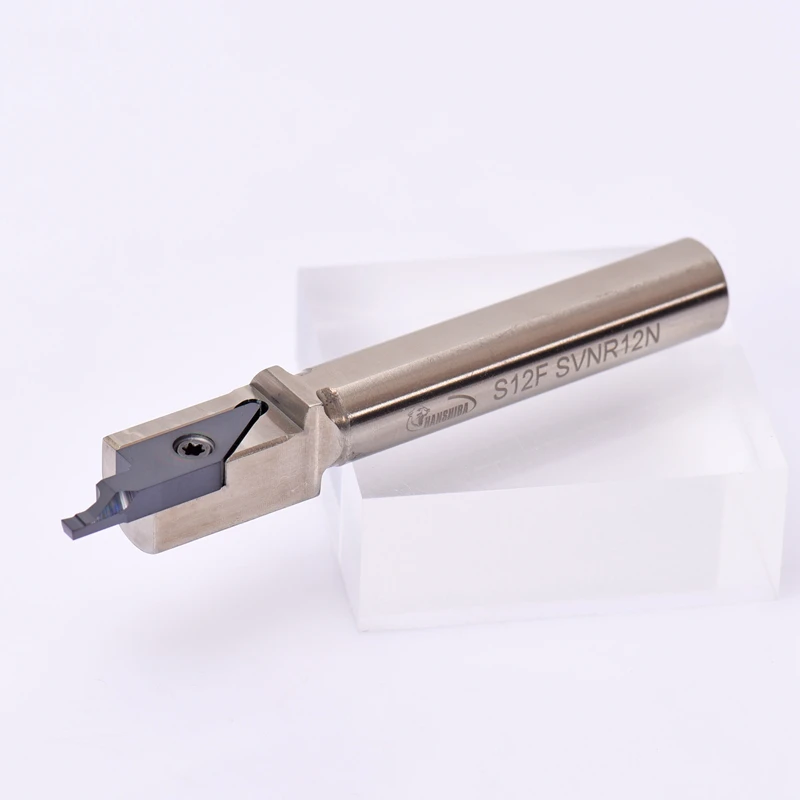

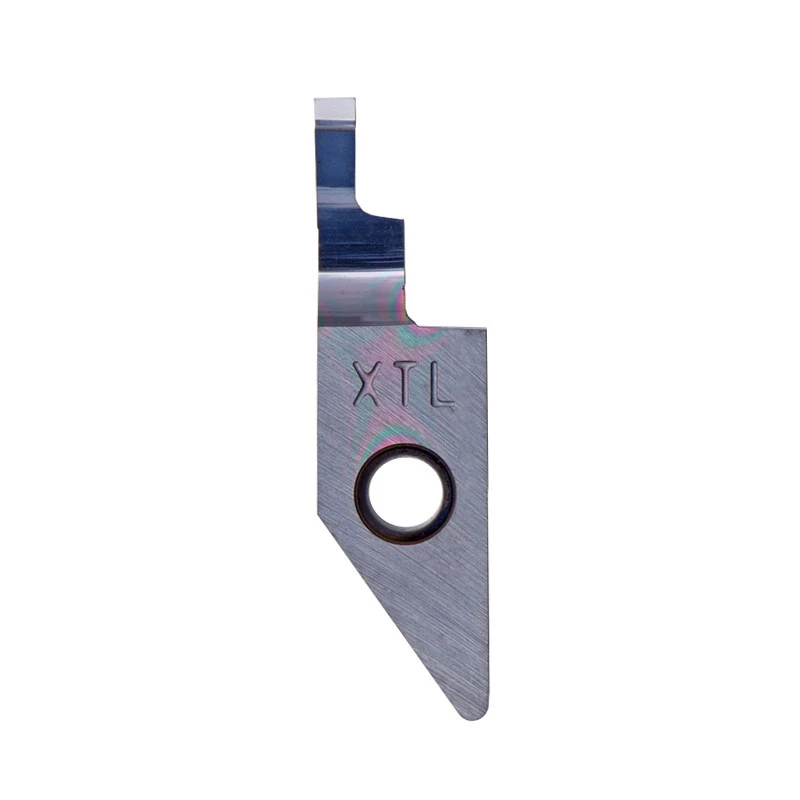

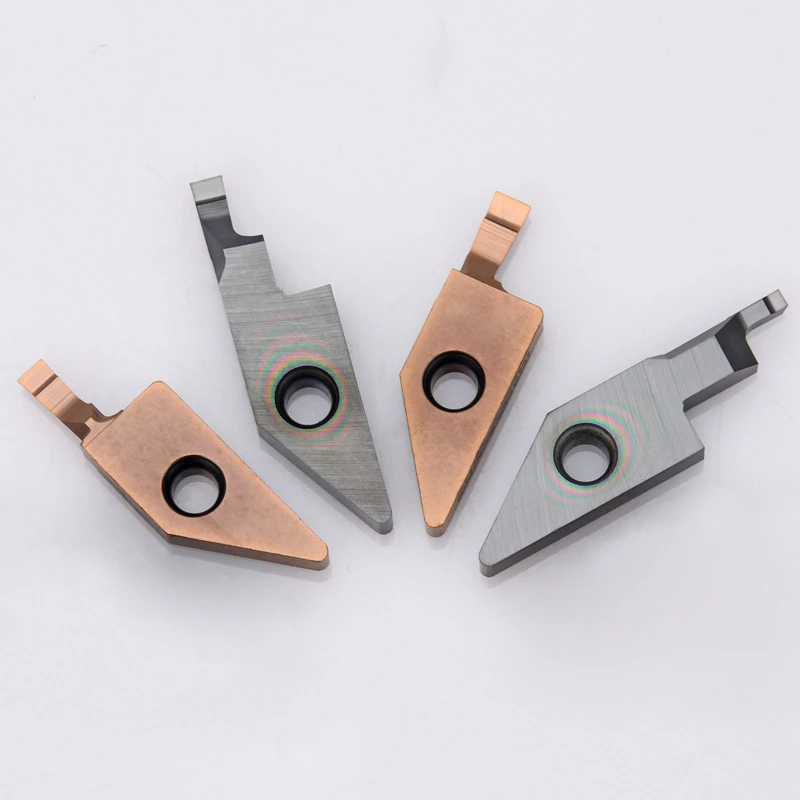

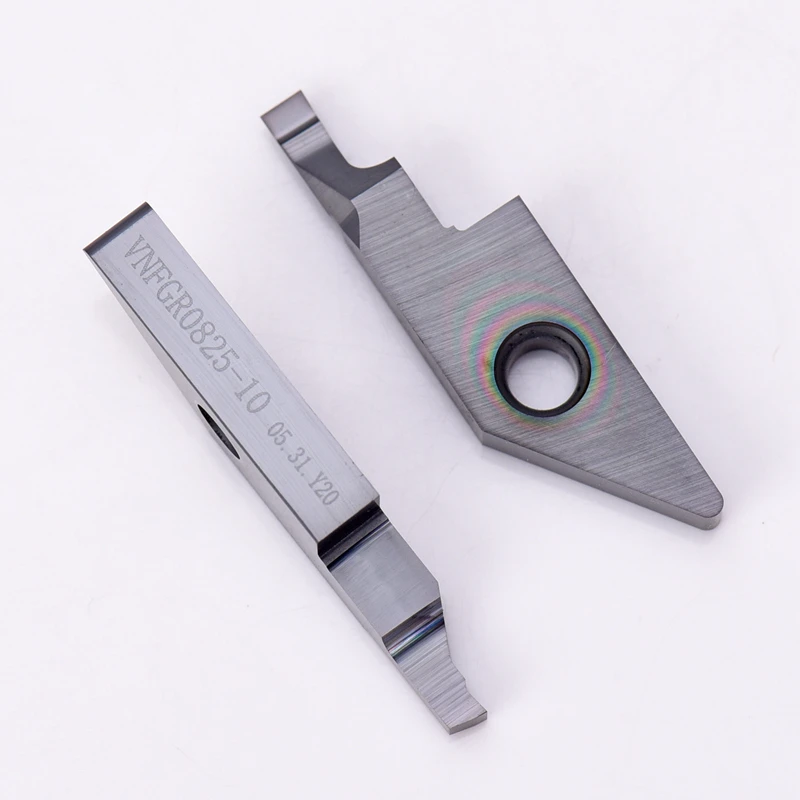

VNMFR
VNMFR
VNMFR
VNMFR
VNMFR
VNMFR
VNMFR
VNMFR
VNMFR
VNMFR

VNMFR

Product Selling Points

Ultra-precision for Micro Grooving
Formed on 5-axis grinders, the cutting edge achieves ±0.005mm accuracy, supporting micro grooves starting from 0.2mm width. The passivated edge prevents chipping, delivering mirror-like finishes up to Ra 0.1μm for micro parts.



High Wear Resistance & Extended Tool Life
Made of ultra-fine grain carbide with premium coatings (e.g., TiAlN), the insert offers exceptional hardness and toughness. It effectively resists vibration and chipping under high-speed micro-cutting, boosting tool life by over 30%.



Optimized Chip Evacuation & Versatility
The specially designed flute geometry guides chips away smoothly, eliminating jamming and workpiece scratching. It fits standard Swiss-type lathe holders for quick insert changes without re-zeroing, ideal for stainless steel, copper, titanium, and more.

Inquiry Now Next Product
Parameters
Product Selling Points
Related Products
Parameters

Specifications and Selection Reference
Item Specification
Applicable Groove Width 0.2mm – 2.0mm (custom non-standard sizes available)
Max. Cutting Depth 0.1mm – 3.0mm (custom depths available on request)
Compatible Machines Swiss-type lathes, gang-tool lathes, small precision CNC lathes
Suitable Workpiece Materials Stainless steel, carbon steel, copper alloys, aluminum alloys, titanium alloys, etc.
Coating Options Uncoated, TiAlN coated, nano-coated, etc.
Product Selling Points

Ultra-precision for Micro Grooving
Formed on 5-axis grinders, the cutting edge achieves ±0.005mm accuracy, supporting micro grooves starting from 0.2mm width. The passivated edge prevents chipping, delivering mirror-like finishes up to Ra 0.1μm for micro parts.



High Wear Resistance & Extended Tool Life
Made of ultra-fine grain carbide with premium coatings (e.g., TiAlN), the insert offers exceptional hardness and toughness. It effectively resists vibration and chipping under high-speed micro-cutting, boosting tool life by over 30%.



Optimized Chip Evacuation & Versatility
The specially designed flute geometry guides chips away smoothly, eliminating jamming and workpiece scratching. It fits standard Swiss-type lathe holders for quick insert changes without re-zeroing, ideal for stainless steel, copper, titanium, and more.
