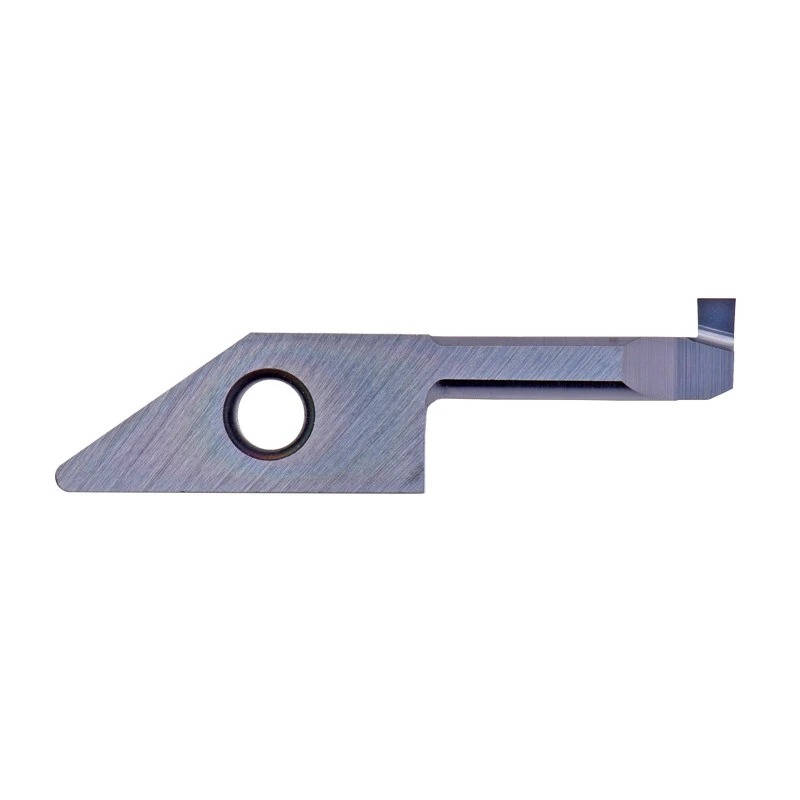

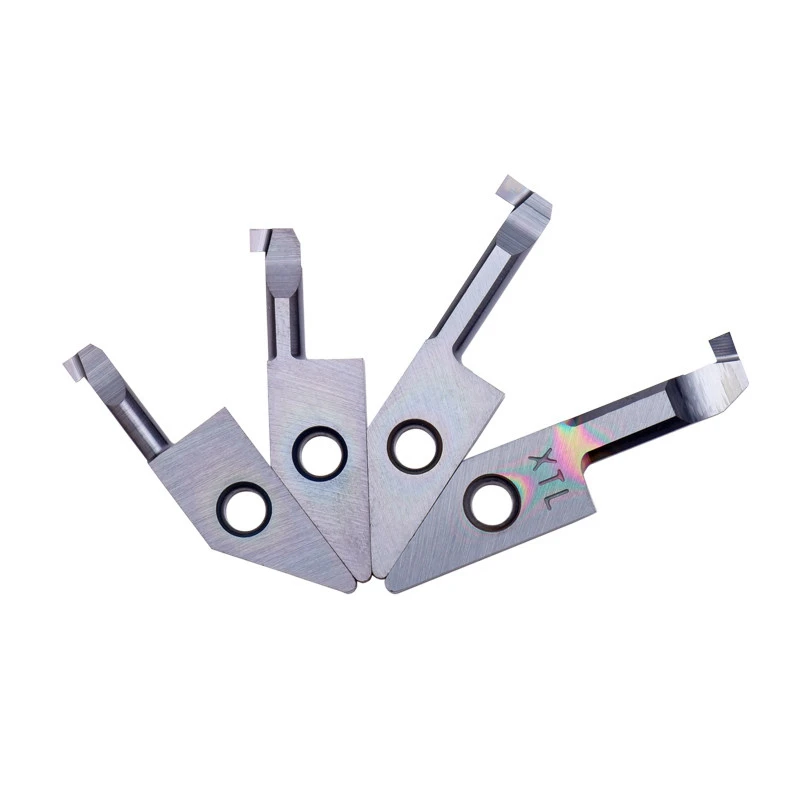

VNGR
VNGR
VNGR
VNGR
VNGR
VNGR

VNGR

Product Selling Points

Ultra-precision for Micro Grooving
Formed on 5-axis grinders, the cutting edge achieves ±0.005mm accuracy, supporting micro grooves starting from 0.2mm width. The passivated edge prevents chipping, delivering mirror-like finishes up to Ra 0.1μm for micro parts.



High Wear Resistance & Extended Tool Life
Made of ultra-fine grain carbide with premium coatings (e.g., TiAlN), the insert offers exceptional hardness and toughness. It effectively resists vibration and chipping under high-speed micro-cutting, boosting tool life by over 30%.



Optimized Chip Evacuation & Versatility
The specially designed flute geometry guides chips away smoothly, eliminating jamming and workpiece scratching. It fits standard Swiss-type lathe holders for quick insert changes without re-zeroing, ideal for stainless steel, copper, titanium, and more.

Inquiry Now Next Product
Parameters
Product Selling Points
Related Products

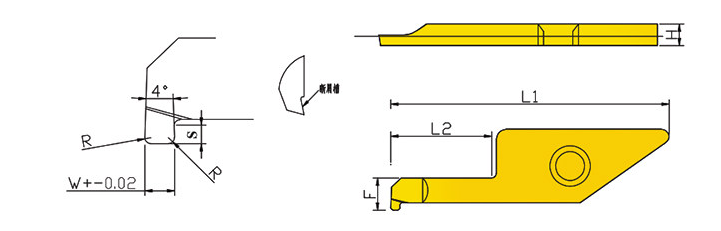

Parameters

Parameters

Processing Reference
Model (VNBR Series) Minimum Machinable Bore Diameter H (mm) W (Groove Width, mm) L2 (mm) F (mm) S (mm) R (Corner Radius, mm)

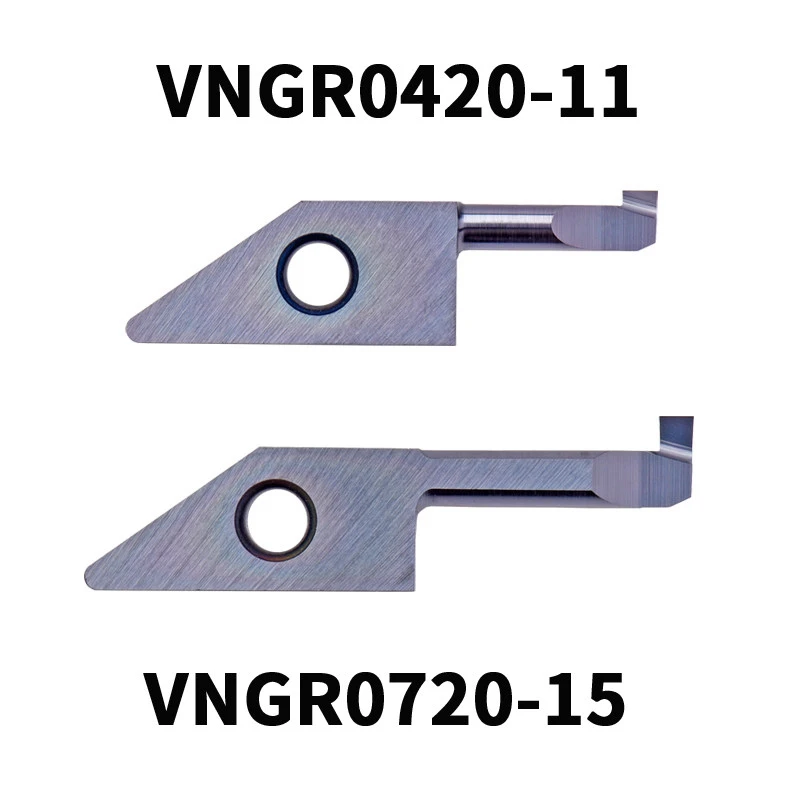

0410-11 4 3.9 1 11 3.5 0.8 0.05
0420-11 4 3.9 2 11 3.5 0.8 0.05
0510-11 5 3.9 1 11 4.4 1.2 0.05
0520-11 5 3.9 2 11 4.4 1.2 0.05
0610-15 6 3.9 1 15 5.2 2 0.05
0620-15 6 3.9 2 15 5.2 2 0.05
0710-15 7 3.9 1 15 6.2 2 0.05
0720-15 7 3.9 2 15 6.2 2 0.05
Product Selling Points

Ultra-precision for Micro Grooving
Formed on 5-axis grinders, the cutting edge achieves ±0.005mm accuracy, supporting micro grooves starting from 0.2mm width. The passivated edge prevents chipping, delivering mirror-like finishes up to Ra 0.1μm for micro parts.



High Wear Resistance & Extended Tool Life
Made of ultra-fine grain carbide with premium coatings (e.g., TiAlN), the insert offers exceptional hardness and toughness. It effectively resists vibration and chipping under high-speed micro-cutting, boosting tool life by over 30%.



Optimized Chip Evacuation & Versatility
The specially designed flute geometry guides chips away smoothly, eliminating jamming and workpiece scratching. It fits standard Swiss-type lathe holders for quick insert changes without re-zeroing, ideal for stainless steel, copper, titanium, and more.
