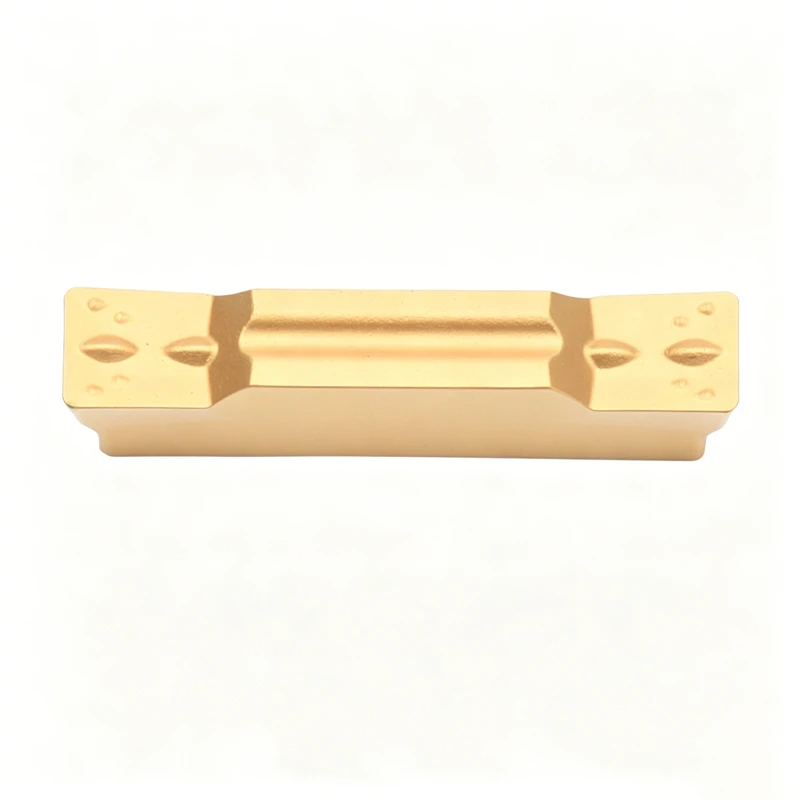

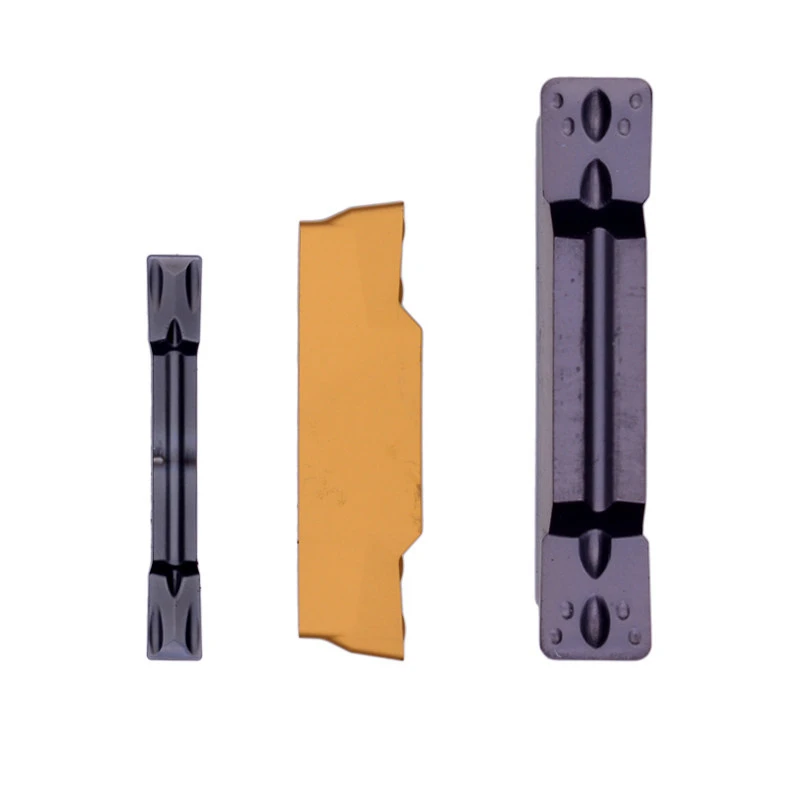

MGMN200-G Insert
Product Description:
The MGMN200-G Insert is a double-ended carbide grooving insert designed for CNC grooving, parting and slotting operations. With a stable G-type chipbreaker, low cutting resistance and smooth chip evacuation, it helps reduce chip jamming, workpiece scratching and unstable cutting during light-to-medium duty machining.
This insert is suitable for steel, alloy steel and stainless steel applications. Different coating options are available to match material requirements, helping improve wear resistance, reduce built-up edge and extend insert service life in continuous or interrupted cutting conditions.
Key Features of MGMN200-G Insert
- G-Type Chipbreaker for Stable Grooving
The optimized G-type chipbreaker supports smooth chip control during grooving and parting. It helps guide chips away from the cutting zone, reducing the risk of chip blockage, surface scratches and cutting vibration.
- Double-Ended Design for Lower Tooling Cost
The MGMN200-G Insert has two usable cutting edges. When one edge becomes worn, the insert can be rotated to use the second edge, helping reduce replacement frequency and per-part machining cost.
- Accurate Groove Width Control
The rigid insert structure and stable cutting edge help maintain consistent groove width during CNC machining. This makes it suitable for applications where groove accuracy and repeatability are important.
- Coating Options for Steel and Stainless Steel
Steel-specific coating provides higher wear resistance for carbon steel and alloy steel machining. Stainless steel-specific coating helps reduce friction and built-up edge, improving cutting stability and tool life when machining sticky or difficult materials.
- Suitable for Grooving and Parting Applications
MGMN200-G Insert can be used for external grooving, slotting and parting operations on CNC lathes. It is suitable for light-to-medium duty machining where stable cutting, smooth chip evacuation and cost efficiency are required.
Applications
MGMN200-G Insert is commonly used for:
CNC grooving
Parting-off operations
Slotting
External groove machining
Steel machining
Stainless steel machining
Alloy steel machining
Light-to-medium duty turning operations
Suitable Workpiece Materials
Carbon steel
Alloy steel
Stainless steel
General metal workpieces
Medium-hardness machining materials
Why Choose MGMN200-G Insert?
For buyers searching for MGMN200-G Insert, the main concerns are usually chip control, cutting stability, tool life and cost per part. This insert is designed to solve these machining problems through a G-type chipbreaker, double-ended cutting structure and material-specific coating options.
It helps improve machining stability, reduce insert waste and maintain reliable groove quality in CNC production environments.
FAQ
Q1: What is MGMN200-G Insert used for?
A1: MGMN200-G Insert is used for CNC grooving, parting and slotting operations, especially in steel and stainless steel machining.
Q2: What does the G-type chipbreaker do?
A2: The G-type chipbreaker helps reduce cutting resistance and guide chips away from the workpiece, improving chip evacuation and machining stability.
Q3: Is MGMN200-G Insert suitable for stainless steel?
A3: Yes. Stainless steel-specific coating options can help reduce friction and built-up edge, making the insert more suitable for stainless steel machining.
Q4: Why does MGMN200-G Insert have two cutting edges?
A4: The double-ended design allows the insert to be rotated after one edge wears out, helping reduce tooling cost and improve insert utilization.
Q5: What machining conditions is MGMN200-G Insert suitable for?
A5: It is suitable for light-to-medium duty grooving and parting operations where stable cutting, smooth chip evacuation and accurate groove width are required.
