Cnc Turning Inserts are replaceable carbide cutting inserts used for CNC turning, boring, facing, profiling, threading and general metal cutting operations. Mounted on CNC turning tool holders or boring bars, they allow users to replace or rotate only the insert when the cutting edge wears out, helping reduce tooling cost and improve machining efficiency. KEUE CNC focuses on carbide turning inserts for steel, stainless steel, alloy steel, cast iron and general metal workpieces, with different insert shapes, chipbreakers, coatings and corner radii available to match cutting depth, feed rate, workpiece material and machining requirements. Compared with brazed or solid tools, indexable turning inserts offer faster replacement, better cost control and more flexible machining performance for CNC lathes, turning centers and Swiss-type machines.

Types of Turning Inserts

CCMT Turning Inserts

CCMT inserts are positive turning inserts commonly used for internal boring, facing, profiling and finishing. Their low cutting resistance makes them suitable for smaller parts, precision boring and stainless steel machining.

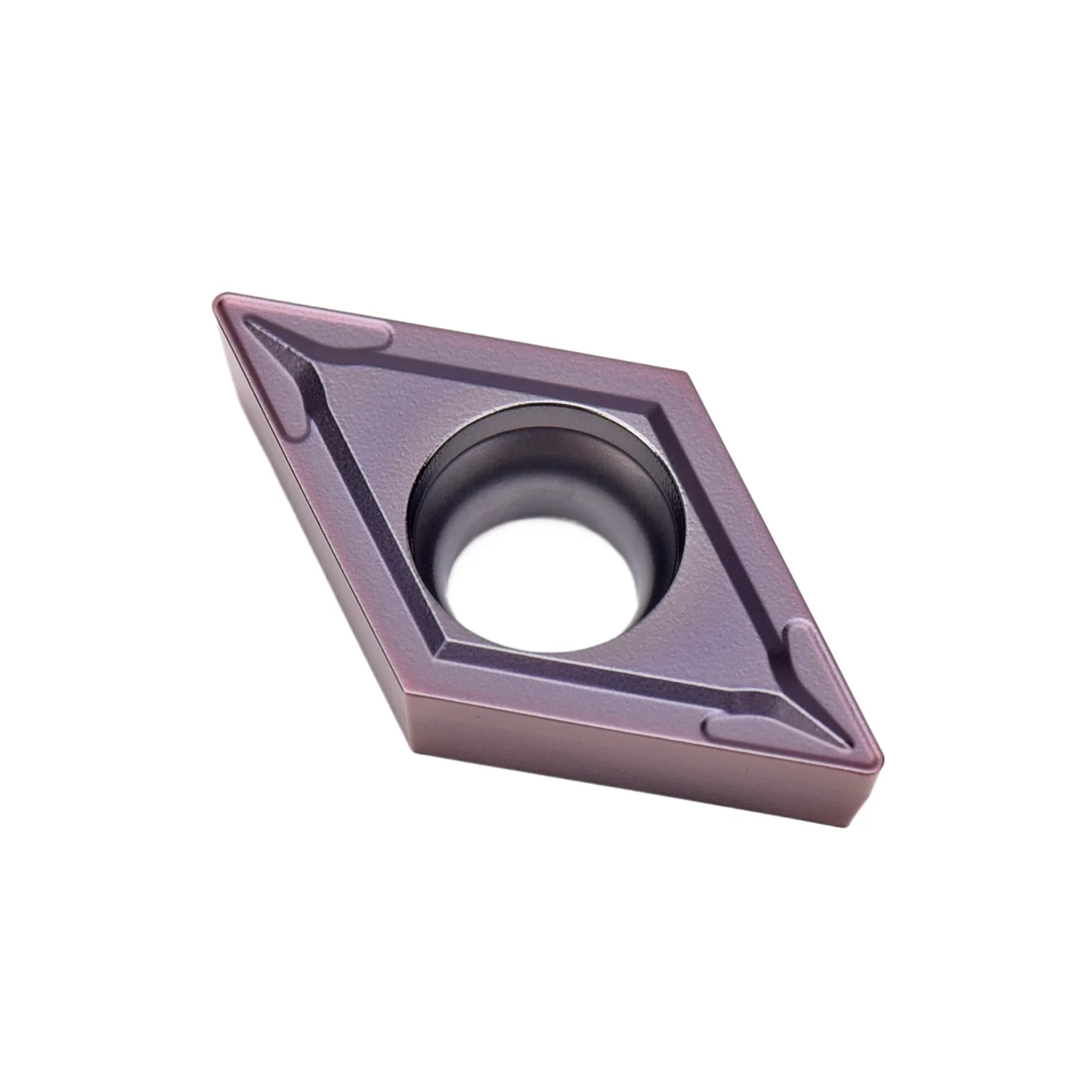

DCMT Turning Inserts

DCMT inserts are suitable for external turning, profiling and finishing operations. The sharp cutting edge and positive geometry help achieve smooth cutting and good surface quality.

WNMG Turning Inserts

WNMG inserts are widely used for external turning, roughing, semi-finishing and medium-duty machining. The double-sided design provides multiple usable cutting edges, helping reduce tooling cost in batch production.

CNMG Turning Inserts

CNMG inserts are strong double-sided turning inserts used for roughing and medium cutting. They are suitable for steel, alloy steel and cast iron machining where edge strength and productivity are important.

TNMG Turning Inserts

TNMG inserts are triangular turning inserts used for general turning, semi-finishing and roughing. Their multiple cutting edges make them cost-effective for continuous production.

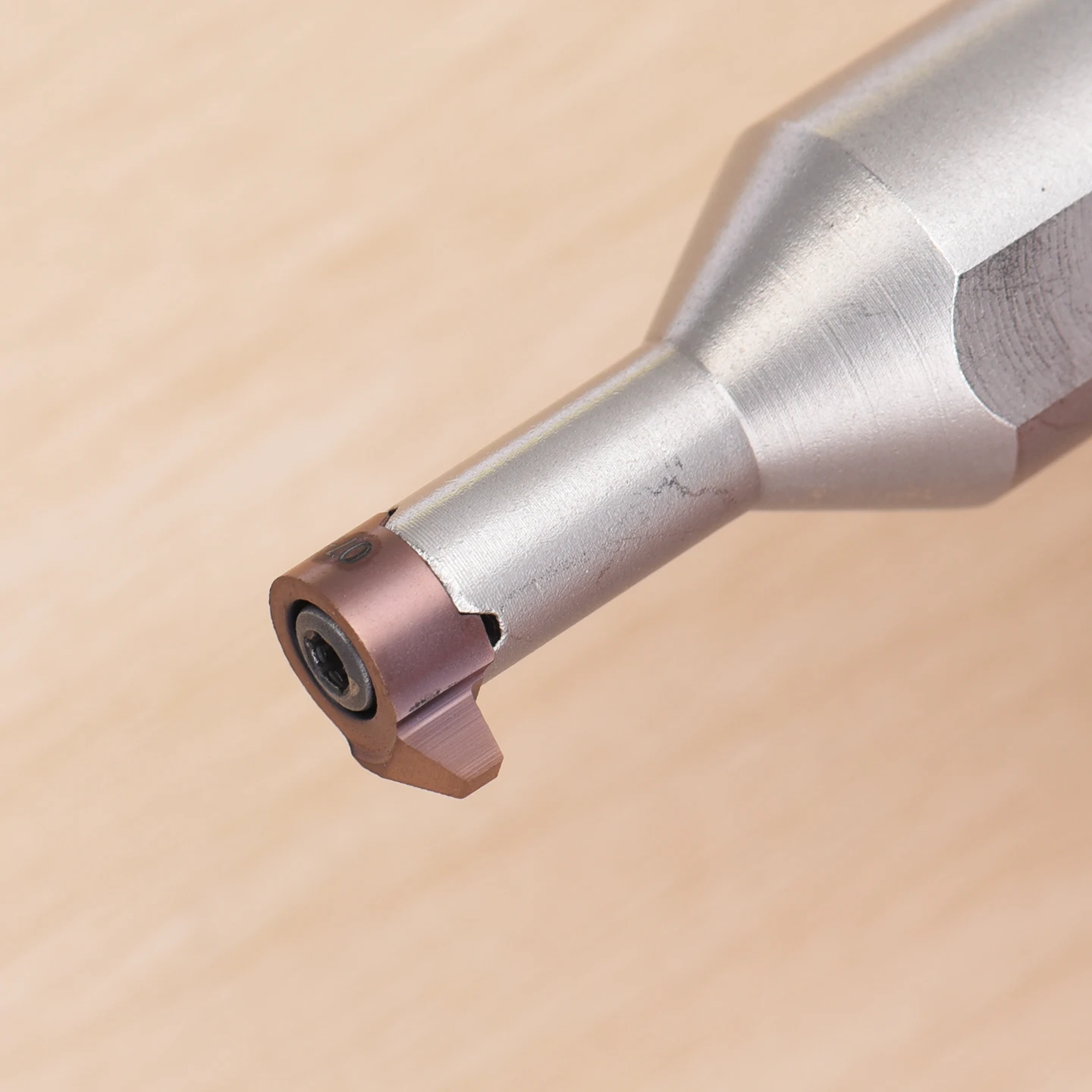

Threading Inserts

Threading inserts such as 16IR and 16ER are used for internal and external thread turning. They are suitable for metric, imperial, UN, NPT, Whitworth and BSPT thread machining on CNC lathes and Swiss machines.

Key Features of KEUE CNC Turning Inserts

Stable Chip Control

Optimized chipbreakers help control chip shape, reduce chip wrapping and improve chip evacuation. This is important for stainless steel, alloy steel and continuous turning operations where poor chip control can affect surface finish and production stability.

High Wear Resistance

Carbide substrates and wear-resistant coatings help improve insert life during high-speed and continuous cutting. Suitable coating selection can reduce friction, heat damage and built-up edge.

Reliable Cutting Stability

Different insert geometries are available for roughing, semi-finishing and finishing. Stronger cutting edges are suitable for interrupted cutting and rough machining, while sharper positive inserts are better for light cutting and precision finishing.

Accurate Surface Finish

Turning inserts with suitable corner radius and chipbreaker design help improve surface quality and dimensional consistency. Smaller corner radii are often used for finishing, while larger corner radii provide stronger edge strength for heavier cutting.

Cost-Effective Indexable Design

Most turning inserts provide multiple usable cutting edges. When one edge wears out, the insert can be indexed or rotated, helping reduce tool replacement cost and improve machining efficiency.

Applications of Cnc Turning Inserts

Cnc Turning Inserts are commonly used for:

External turning
Internal boring
Facing
Profiling
Thread turning
Semi-finishing
Finishing
Rough turning
Shaft machining
Sleeve machining
Stainless steel turning
General CNC lathe machining

Suitable Workpiece Materials

Carbon steel
Alloy steel
Stainless steel
Cast iron
Hardened steel
Non-ferrous metals
General metal workpieces

How to Choose the Right Turning Insert

There are many variables that go into choosing the correct insert for your turning operations: insert shape, geometry, grade, and more. The goal is to select an insert that meets your requirements for quality and performance, while providing good chip control, and a reasonable combination of wear resistance and toughness.

Choose the insert style (shape and size) based on the features of the part and the desired depth of cut. A larger nose radius is stronger, but requires more machine power, and increases the tendency for vibration. A smaller nose radius increases the access to fine part features, but has a weaker cutting edge.

Choose the chip breaker (geometry) based on the selected machining operation: finishing, medium, or roughing. Roughing with high depths of cut and feedrates requires an insert with a stronger cutting edge.

Finishing operations with light depths of cut and lower feedrates produce lower cutting forces, so cutting-edge strength is not as important. Medium turning operations, with a wide range of depths of cut and feedrate, require a more versatile geometry.

Choose the insert grade (coatings) based on the type of material being cut, the specific machining operation (finishing, medium, roughing), and the cutting conditions (smooth, lightly interrupted, heavily interrupted). The insert grade and the chip breaker complement each other to provide specific performance characteristics. A tougher grade can compensate for a cutting edge with less strength, while a more wear resistant grade can provide longer tool life on a stronger cutting edge.

Why Choose KEUE CNC Turning Inserts?

For users searching for Cnc Turning Inserts, the main concerns are usually insert model compatibility, cutting stability, chip control, surface finish, tool life and cost per part. KEUE CNC turning inserts are designed for practical CNC machining conditions, helping users achieve stable performance in turning, boring, facing, profiling and threading applications.

Different insert models, chipbreakers, coatings and grades can be selected for steel, stainless steel, alloy steel, cast iron and other metal materials, making the product range suitable for both general machining and specific production requirements.

FAQ

Q1: What are Cnc Turning Inserts used for?

Cnc Turning Inserts are used for external turning, internal boring, facing, profiling, threading, roughing, semi-finishing and finishing operations on CNC lathes.

Q2: What is the difference between CCMT, WNMG and CNMG inserts?

CCMT inserts are positive inserts commonly used for boring and finishing. WNMG inserts are multi-edge inserts suitable for medium turning. CNMG inserts are stronger double-sided inserts often used for roughing and medium-duty machining.

Q3: How do I choose the correct turning insert?

Choose according to workpiece material, machining type, insert shape, corner radius, chipbreaker, coating, cutting depth, feed rate and tool holder compatibility.

Q4: Which turning insert is suitable for stainless steel?

For stainless steel machining, inserts with sharp cutting geometry, stable chipbreaker and low-friction coating are recommended to reduce built-up edge and improve chip evacuation.

Q5: What does corner radius mean on a turning insert?

Corner radius refers to the radius of the insert cutting tip. A smaller radius is suitable for finishing and light cutting, while a larger radius improves edge strength for heavier cutting.

Q6: Can turning inserts be used for internal boring?

Yes. Positive inserts such as CCMT and DCMT are commonly used with boring bars for internal boring and hole finishing applications.

Q7: Are threading inserts part of turning inserts?

Yes. Threading inserts such as 16IR and 16ER are a type of turning insert used for internal and external thread turning.

Q8: Do turning inserts need matching tool holders?

Yes. Turning inserts should be matched with suitable CNC turning tool holders or boring bars according to insert model, size and cutting direction.
