How to Align a Small Bore Boring Tool on a CNC Lathe

Understanding the Importance of Proper Tool Alignment

What is a Small Bore Boring Tool?

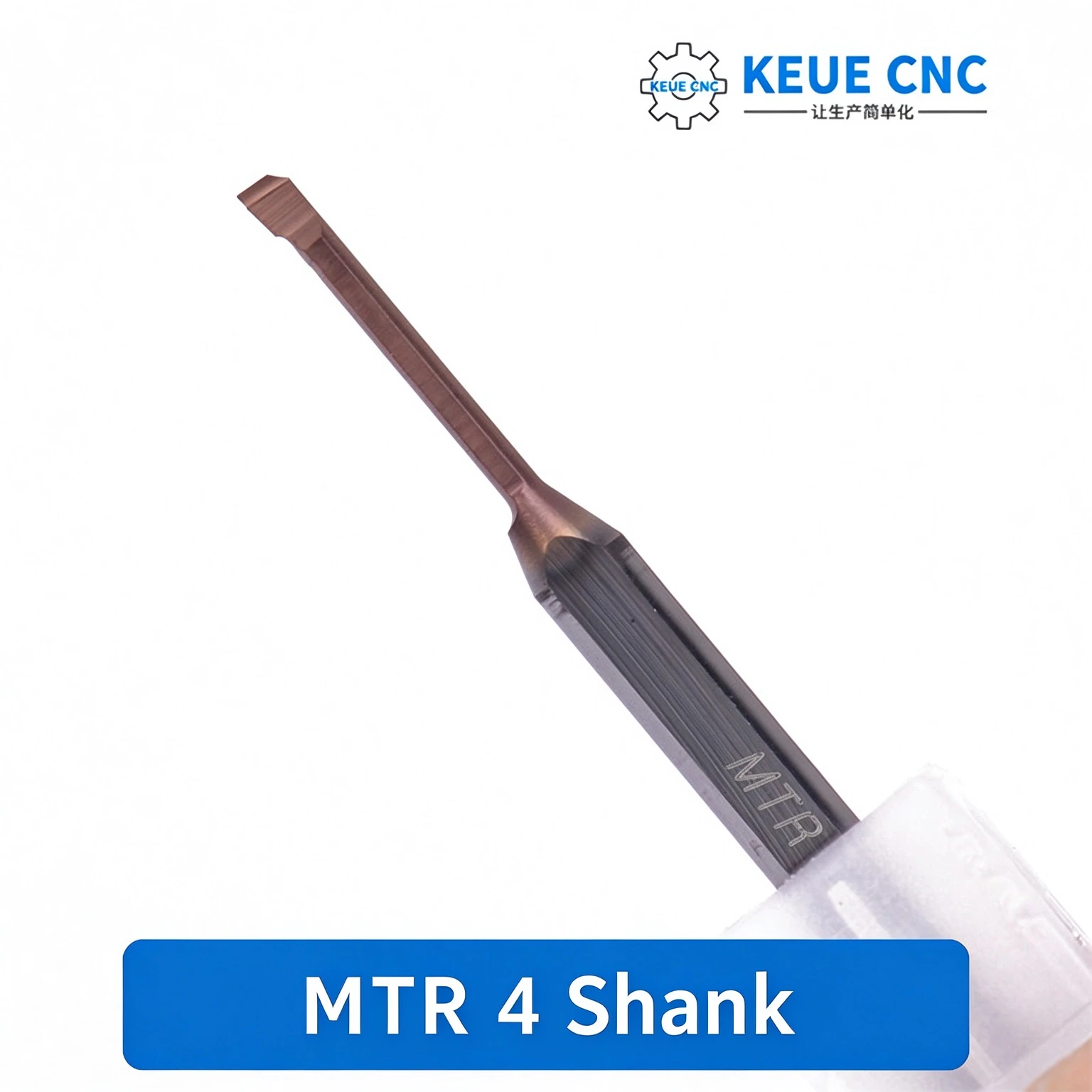

A small bore boring tool is used for precision machining in a variety of applications. Proper alignment is crucial to ensure high-quality results and avoid tool wear.

Pain Points of Users

• Difficulty in achieving accurate alignment
• Frequent tool wear and tear
• Inconsistent machining results
• Time-consuming setup processes
• Risk of damaging workpieces

Tools Required for Aligning a Small Bore Boring Tool

• Caliper for measurement
• Dial indicator for precision
• Alignment fixtures
• Torque wrench for tightening
• Wrench set for various fittings
• Calibration tools

Step-by-Step Guide to Aligning Your Small Bore Boring Tool

Step 1: Prepare Your CNC Lathe

Ensure your CNC lathe is clean and free from debris. This prevents any interference while aligning the boring tool.

Step 2: Install the Boring Tool

Carefully insert the small bore boring tool into the spindle of the CNC lathe. Ensure it is securely fastened to avoid any movement during operation.

Step 3: Measure Initial Position

Use a caliper to measure the initial position of the boring tool. This will serve as your reference point for adjustments.

Step 4: Use a Dial Indicator

Attach a dial indicator to the tool holder. Rotate the spindle and observe the readings on the dial to check for misalignment. Note any discrepancies.

Step 5: Adjust the Tool Position

Based on the readings, adjust the position of the boring tool. Make small adjustments and re-measure using the dial indicator until you achieve alignment.

Step 6: Tighten the Tool Holder

Once properly aligned, use a torque wrench to tighten the tool holder bolts. Ensure that the tool is securely fixed to avoid any movement during machining.

Step 7: Conduct a Test Run

Perform a test run on a piece of scrap material. Check for precision and accuracy in the cut. This will verify that the tool is aligned correctly.

Common Mistakes to Avoid During Alignment

• Neglecting to clean the lathe before setup
• Forgetting to measure initial positions
• Making large adjustments instead of small incremental changes
• Not securing the tool holder adequately
• Skipping the test run before production

Concluding Thoughts on Small Bore Boring Tool Alignment

Aligning a small bore boring tool on a CNC lathe is a precise task that affects overall machining quality. By following this detailed step-by-step guide, you can minimize errors and enhance your machining effectiveness. Choose KEUE CNC for all your machining needs to ensure reliable and consistent results.
